Heating Cable

  • Product Information:

    Heating cable is designed to be as thin as possible, only 3.6mm, with 12Watts/M of output power. That provides the economic and energy saving with a minimal increase in floor level.

  • Features:
    • Twin conductor cable
    • Flexible installation
    • Emits zero EMF (electromagnetic fields)
    • Durable construction
    • Single point safety connection
    • 25-Years limited warranty
  • Applications:
    • Designed for installation under tile, wood floor and marble
    • Output power at 12W/m, can be set out so one square meter’s power will suit the heating requirement. *Refer to cable setting out chart for heating areas and watts per metre requirement.
    • Ultra-thin cable
    • Minimum installation temp 5℃
    • Max Ambient Temp: 30℃
    • Approvals CE EAC TUV
  • Technical data:

    Cable construction - Twin conductor

    Conductor  - Solid heating core

    Outer Insulation - PVC

    Conductor Insulation - Fluoropolymer

    Shield - Aluminum foil

    Connector  - Out splice

    Outside diameter - 3.6mm


    Rated voltage - 230VAC

    Power output - 12W/m

    Resistance tolerance - +10/-5 %

    Cold Lead - 2.5m length

Setting Out Chart
All prices include VAT at 20% and delivery to UK mainland
Part

Number		 Wattage

w		 Length

m		 Resistance

Ω		 Price

£
HF.C12.12.50 150 12.50 352.67 £31.74
HF.C12.18.75 225 18.75 235.11 £40.74
HF.C12.25.00 300 25.00 176.33 £49.74
HF.C12.31.25 375 31.25 141.07 £58.50
HF.C12.37.50 450 37.50 117.56 £67.44
HF.C12.43.75 525 43.75 100.76 £76.14
HF.C12.50.00 600 50.00 88.17 £85.44
HF.C12.56.25 675 56.25 78.37 £93.54
HF.C12.62.50 750 62.50 70.53 £97.44
HF.C12.37.50+31.25 825 37.50 + 31.25 * £103.75
HF.C12.75.00 900 75.00 58.78 £109.44
HF.C12.43.75+37.50 975 43.75+37.50 * £115.60
HF.C12.87.50 1050 87.50 50.38 £121.50
HF.C12.50.00+43.75 1125 50.00+43.75 * £127.80
HF.C12.100.00 1200 100.00 44.08 £134.10
HF.C12.56.25+50.00 1275 56.25+50.00 * £141.00
HF.C12.112.50 1350 112.50 39.19 £147.54
HF.C12.125.00 1500 125.00 35.27 £161.70
HF.C12.100.00+37.50 1650 100.00+37.50 * 176.10
HF.C12.150.00 1800 150.00 29.39 £189.84
HF.C12.87.50+75.00 1950 87.50+75.50 * £203.10
HF.C12.87.50+87.50 2100 87.50+87.50 * £215.70
HF.C12.100.00+87.50 2250 100.00+87.50 * £230.64
HF.C12.100.00+100.00 2400 100.00+100.00 * £243.90
HF.C12.112.50+100.00 2550 112.50+100.00 * £259.44
HF.C12.112.50+112.50 2700 112.50+112.50 * £275.25
HF.C12.125.00+112.50 2850 125.00+112.50 * £289.50
HF.C12.125.00+125.00 3000 125.00+125.00 * £305.04
*Supplied as 2 Coils. Resistance as per each coil

Self-adhesive Underfloor Mesh Mat

  • Product Information:

    HF M mat uses a twin conductor heating cable for ease of installation and very low EMF. The mat thickness of only 4.0 mm enables underfloor heating installations into most quality two-part adhesive with a minimum increase in floor height.

  • Features:
    • 100W/m2 and 150W/m2
    • Twin conductor heating cable
    • Very low EMF
    • "Only one cold tail for ease of installation. 2.5 metres"
    • Thin, only 4.0 mm
    • Self-adhesive
    • Flexible
    • 100% screened
    • 25 Year limited warranty
  • Applications:
    • HF.M mat is designed for installation into tile adhesive beds, levelling compounds or thin screed beds beneath tiled and wooden floor finish
    • 100 and 150w/m2 heating mats are suitable as a primary heating source providing you have adequate insulation. These are our most commonly used mats for kitchens, dining rooms, large bathrooms and most other areas with tiled and timber floors
    • Approvals CE EAC TUV
  • Technical data:

    Cable construction - Twin conductor

    Conductor - Solid heating core

    Insulation - Fluoropolymer

    Shield - Al foil and Cu wire

    Protective jacket - PVC

    Connector - Out splice 2.5M in length

    Outside diameter - 3.6mm

    Rated voltage - 230VAC

    Power output - 100W/m2   150W/m2

    Resistance tolerance - +10/-5 %

Part

Number		 Heat Area

m2		 Mat Size

mxm		 Wattage

w		 Resistance

Ω		 Price

£
HF.M100.1.0 1 0.5×2 100 529.00 £51.32
HF.M100.1.5 1.5 0.5×3 150 352.67 £61.44
HF.M100.2.0 2 0.5×4 200 264.50 £76.14
HF.M100.2.5 2.5 0.5×5 250 211.60 £83.94
HF.M100.3.0 3 0.5×6 300 176.33 £91.44
HF.M100.3.5 3.5 0.5×7 350 151.14 £96.9
HF.M100.4.0 4 0.5×8 400 132.25 £102.54
HF.M100.4.5 4.5 0.5×9 450 117.56 £109.74
HF.M100.5.0 5 0.5×10 500 105.80 £119.7
HF.M100.6.0 6 0.5×12 600 88.17 £134.94
HF.M100.7.0 7 0.5×14 700 75.57 £150.24
HF.M100.8.0 8 0.5×16 800 66.13 £164.76
HF.M100.9.0 9 0.5×18 900 58.78 £180.54
HF.M100.10.0 10 0.5×20 1000 52.90 £194.94
HF.M100.12.0 12 0.5×24 1200 44.08 £226.14
HF.M100.13.0 13 0.5×26 1300 * £250.14
HF.M100.14.0 14 0.5×28 1400 * £267.84
HF.M100.15.0 15 0.5×30 1500 * £284.94
HF.M100.16.0 16 0.5×32 1600 * £301.74
HF.M100.17.0 17 0.5×34 1700 * £318.9
HF.M100.18.0 18 0.5×36 1800 * £335.34
HF.M100.19.0 19 0.5×38 1900 * £350.64
HF.M100.20.0 20 0.5×40 2000 * £363.3
Part

Number		 Heat Area

m2		 Mat Size

mxm		 Wattage

w		 Resistance

Ω		 Price

£
HF.M150.1.0 1 0.5×2 150 352.67 £36.5
HF.M150.1.5 1.5 0.5×3 225 235.11 £43
HF.M150.2.0 2 0.5×4 300 176.33 £51
HF.M150.2.5 2.5 0.5×5 375 141.07 £59
HF.M150.3.0 3 0.5×6 450 117.56 £64
HF.M150.3.5 3.5 0.5×7 525 100.76 £73.15
HF.M150.4.0 4 0.5×8 600 88.17 £82
HF.M150.4.5 4.5 0.5×9 675 78.37 £92.7
HF.M150.5.0 5 0.5×10 750 70.53 £97.7
HF.M150.6.0 6 0.5×12 900 58.78 £113.7
HF.M150.7.0 7 0.5×14 1050 50.38 £131.5
HF.M150.8.0 8 0.5×16 1200 44.08 £148.5
HF.M150.9.0 9 0.5×18 1350 39.19 £161
HF.M150.10.0 10 0.5×20 1500 35.27 £177.5
HF.M150.12.0 12 0.5×24 1800 29.39 £204
HF.M150.13.0 13 0.5×26 1950 * £216.2
HF.M150.14.0 14 0.5×28 2100 * £228.2
HF.M150.15.0 15 0.5×30 2250 * £243.7
HF.M150.16.0 16 0.5×32 2400 * £259.9
HF.M150.17.0 17 0.5×34 2550 * £275
HF.M150.18.0 18 0.5×36 2700 * £290
HF.M150.19.0 19 0.5×38 2850 * £302
HF.M150.20.0 20 0.5×40 3000 * £318.75
All prices include VAT at 20% and delivery to UK mainland
Part

Number		 Heat Area

m2		 Mat Size

mxm		 Wattage

w		 Resistance

Ω		 Price

£
HF.M100.1.0 1 0.5×2 100 529.00 £51.32
HF.M100.1.5 1.5 0.5×3 150 352.67 £61.44
HF.M100.2.0 2 0.5×4 200 264.50 £76.14
HF.M100.2.5 2.5 0.5×5 250 211.60 £83.94
HF.M100.3.0 3 0.5×6 300 176.33 £91.44
HF.M100.3.5 3.5 0.5×7 350 151.14 £96.90
HF.M100.4.0 4 0.5×8 400 132.25 £102.54
HF.M100.4.5 4.5 0.5×9 450 117.56 £109.74
HF.M100.5.0 5 0.5×10 500 105.80 £119.70
HF.M100.6.0 6 0.5×12 600 88.17 £134.94
HF.M100.7.0 7 0.5×14 700 75.57 £150.24
HF.M100.8.0 8 0.5×16 800 66.13 £164.76
HF.M100.9.0 9 0.5×18 900 58.78 £180.54
HF.M100.10.0 10 0.5×20 1000 52.90 £194.94
HF.M100.12.0 12 0.5×24 1200 44.08 £226.14
HF.M100.13.0 13 0.5×26 1300 * £250.14
HF.M100.14.0 14 0.5×28 1400 * £267.84
HF.M100.15.0 15 0.5×30 1500 * £284.94
HF.M100.16.0 16 0.5×32 1600 * £301.74
HF.M100.17.0 17 0.5×34 1700 * £318.90
HF.M100.18.0 18 0.5×36 1800 * £335.34
HF.M100.19.0 19 0.5×38 1900 * £350.64
HF.M100.20.0 20 0.5×40 2000 * £363.30
Part

Number		 Heat Area

m2		 Mat Size

mxm		 Wattage

w		 Resistance

Ω		 Price

£
HF.M150.1.0 1 0.5×2 150 352.67 £36.50
HF.M150.1.5 1.5 0.5×3 225 235.11 £43.00
HF.M150.2.0 2 0.5×4 300 176.33 £51.00
HF.M150.2.5 2.5 0.5×5 375 141.07 £59.00
HF.M150.3.0 3 0.5×6 450 117.56 £64.00
HF.M150.3.5 3.5 0.5×7 525 100.76 £73.15
HF.M150.4.0 4 0.5×8 600 88.17 £82.00
HF.M150.4.5 4.5 0.5×9 675 78.37 £92.70
HF.M150.5.0 5 0.5×10 750 70.53 £97.70
HF.M150.6.0 6 0.5×12 900 58.78 £113.70
HF.M150.7.0 7 0.5×14 1050 50.38 £131.50
HF.M150.8.0 8 0.5×16 1200 44.08 £148.50
HF.M150.9.0 9 0.5×18 1350 39.19 £161.00
HF.M150.10.0 10 0.5×20 1500 35.27 £177.50
HF.M150.12.0 12 0.5×24 1800 29.39 £204.00
HF.M150.13.0 13 0.5×26 1950 * £216.20
HF.M150.14.0 14 0.5×28 2100 * £228.20
HF.M150.15.0 15 0.5×30 2250 * £243.70
HF.M150.16.0 16 0.5×32 2400 * £259.90
HF.M150.17.0 17 0.5×34 2550 * £275.00
HF.M150.18.0 18 0.5×36 2700 * £290.00
HF.M150.19.0 19 0.5×38 2850 * £302.00
HF.M150.20.0 20 0.5×40 3000 * £318.75
*Supplied as 2 Mats. Resistance as per each Mat.

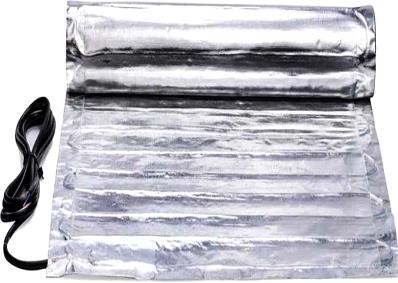

Underfloor Foil Mat

  • Product Information:

    HF. F-mat uses twin conductor heating cable with fluoropolymer insulation and embedded in a reinforced aluminium foil mat. The mat total thickness is ultra-thin about 1.8mm. This decreases the floor height and increases the comfort level.

  • Features:
    • 150W/m2 twin conductor heating cable
    • 2.5-metre cold lead
    • Ultra-thin, only 1.8mm
    • Emits zero EMF (electromagnetic field)
    • Flexible installation
    • Durable construction
    • Fully earthed
    • 25-Years limited warranty
  • Applications:

    Happy Feet Foil mat is designed for installing under wooden floors, laminate floors and under carpet flooring. The foil mat is for use in ‘dry’ installations and when installed under carpet the underlay and carpet must have a value of no more than 2.5 Tog. This allows the heat from the foil mat to transfer through the carpet to the room.


    Happy Feet Foil mat can be cut and turned to achieve the required floor coverage and multiple mats can be connected together to cover large areas. When fitting under floor heating a suitable insulation should always be used especially over concrete sub floors.


    The 150W/m2   Happy Feet Foil mats can be used as a primary heat source. Each mat is supplied with full installation instructions that must be followed for a successful and warranted installation.


  • Technical data:

    Cable Construction - Twin conductor

    Conductor - Solid heating core

    Insulation - Fluoropolymer

    Cable spacing - 50mm

    Cable diameter - 1.0mm

    Connector  - Out splice

    Max Ambient Temp - 30℃

    Min Installation Temp - 5℃

    Rated voltage - 230Vac

    Power output - 150W/m2

    Resistance tolerance - +10/-5 %

    Cold lead - 2.5 M length

All prices include VAT at 20% and delivery to UK mainland
Part

Number		 Heat Area

m2		 Mat Size

mxm		 Wattage

w		 Resistance

Ω		 Price

£
HF.F150.1.0 1 0.5×2 150 352.67 £38.58
HF.F150.1.5 1.5 0.5×3 225 235.11 £49.38
HF.F150.2.0 2 0.5×4 300 176.33 £57.54
HF.F150.2.5 2.5 0.5×5 375 141.07 £63.54
HF.F150.3.0 3 0.5×6 450 117.56 £74.34
HF.F150.3.5 3.5 0.5×7 525 100.76 £80.64
HF.F150.4.0 4 0.5×8 600 88.17 £90.54
HF.F150.4.5 4.5 0.5×9 675 78.37 £99.90
HF.F150.5.0 5 0.5×10 750 70.53 £104.94
HF.F150.6.0 6 0.5×12 900 58.78 £123.90
HF.F150.7.0 7 0.5×14 1050 50.38 £135.00
HF.F150.8.0 8 0.5×16 1200 44.08 £152.64
HF.F150.9.0 9 0.5×18 1350 39.19 £170.64
HF.F150.10 10 0.5×20 1500 35.27 £188.64
HF.F150.12 12 0.5×24 1800 29.39 £224.04
HF.F150.13 13 * 1950 * £241.14
HF.F150.14 14 * 2100 * £259.14
HF.F150.15 15 * 2250 * £277.44
HF.F150.16 16 * 2400 * £295.44
HF.F150.17 17 * 2550 * £312.91
HF.F150.18 18 * 2700 * £330.24
HF.F150.19 19 * 2850 * £348.24
HF.F150.20 20 * 3000 * £364.50
*Supplied as 2 Mats. Resistance as per each Mat.

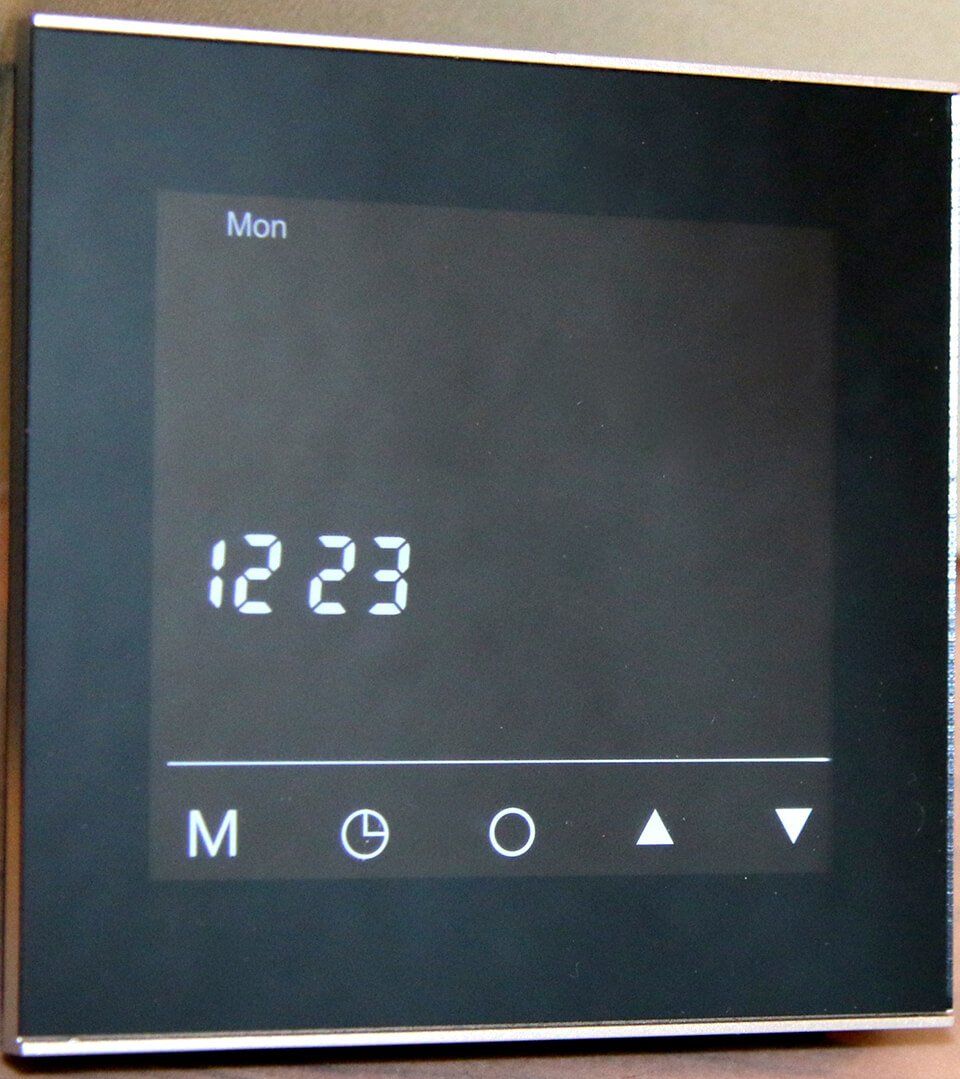

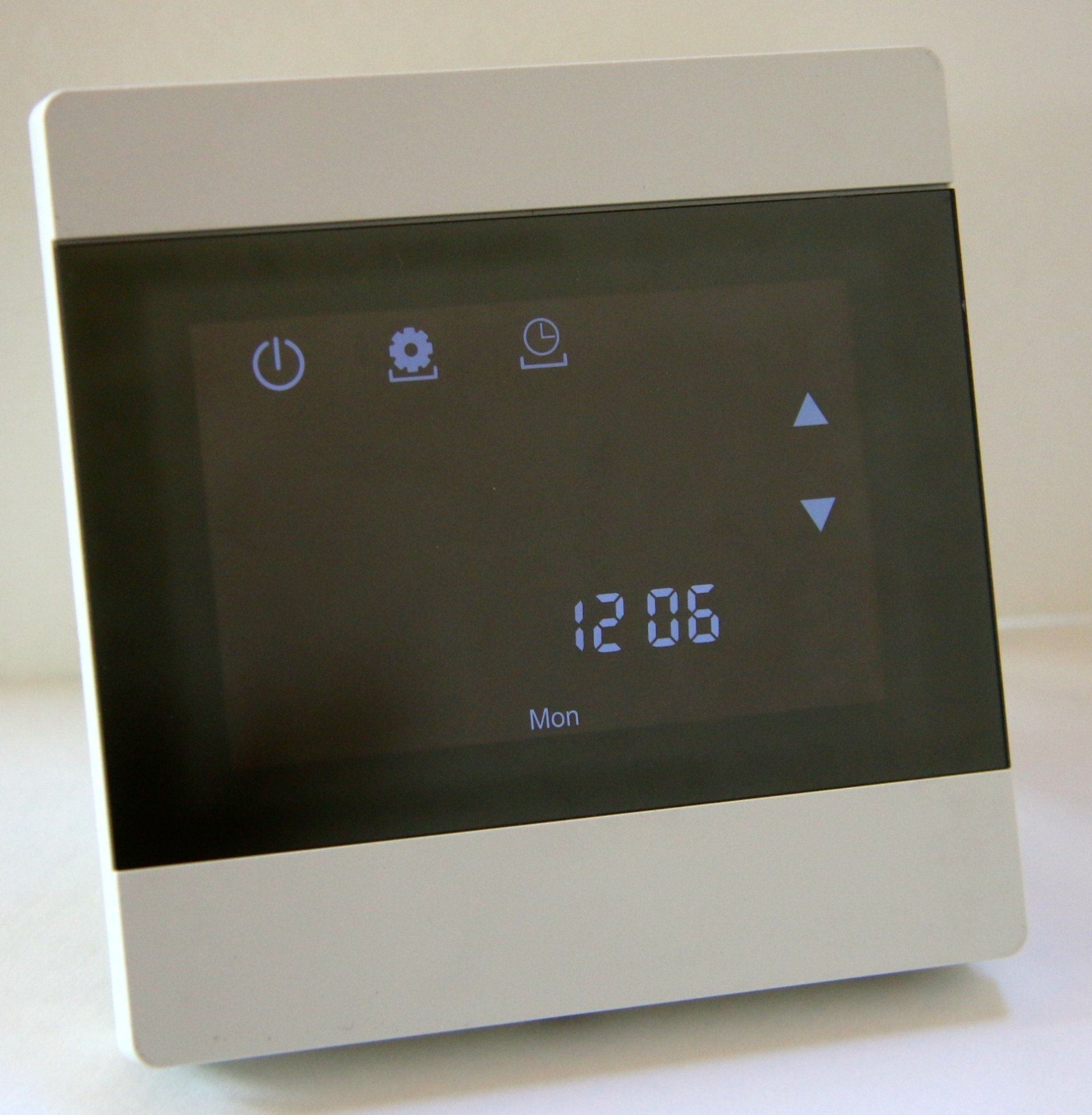

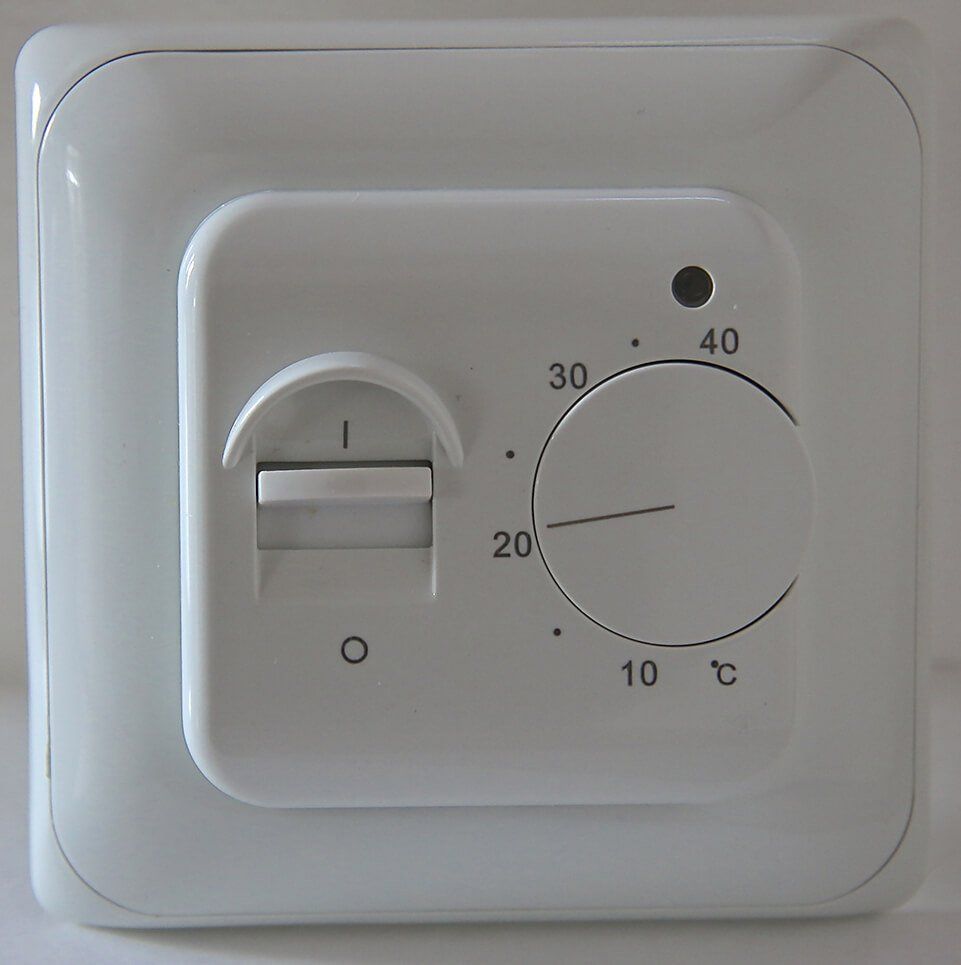

Thermostats

We also offer a range of thermostats, giving you complete temperature control of your underfloor system. This means you can heat your floors easily and efficiently to your exact requirements, lifestyle and budget.

Feeling green? Our thermostats provide you with economical running costs and have a low energy consumption, while evenly radiating heat throughout your home or office.
