100Watt/M Mat 9.0sq.M.

Applications
Happy Feet mat is designed for installation into tile adhesive beds, levelling compounds or thin screed beds beneath tiled and wooden floor finish
100 and 150w/m2 heating mats are suitable as a primary heating source providing you have adequate insulation. These are our most commonly used mats for kitchens, dining rooms, large bathrooms and most other areas with tiled and timber floor

Product Details

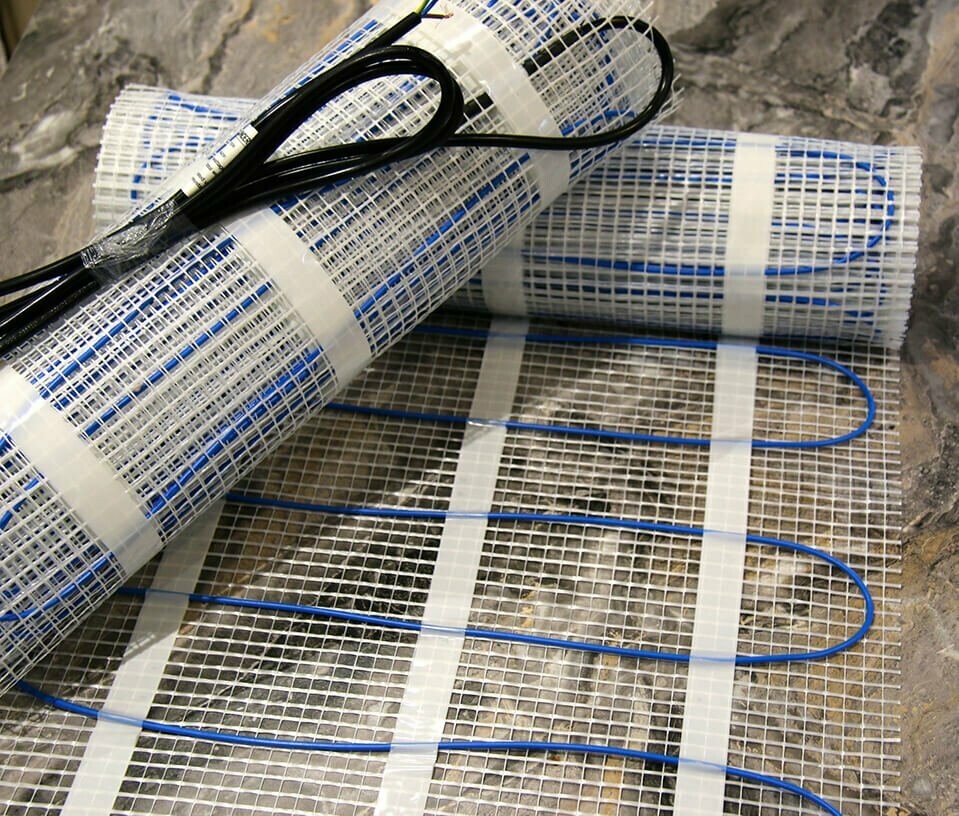

Happy Feet mat uses a twin conductor heating cable for ease of installation and very low EMF. The mat thickness of only 4.0 mm enables under floor heating installations into most quality two-part tile adhesive with a minimum increase in floor height.

Mat mesh has an adhesive backing for easy installation.
Each mat is supplied with full installation instructions that must be followed for a successful and warranted installation.

Technical Data
Cable construction - Twin conductor
Conductor - Solid copper heating core
Insulation - Fluoropolymer
Shield - Al foil and Cu wire
Protective jacket - PVC
Connector - Out splice
Cable outside diameter - 3.6mm
Heating Mat thickness - 4.0mm
Rated voltage - 230VAC
Power output - 100W/m2
Resistance tolerance +10/-5 %
Approvals - CE
