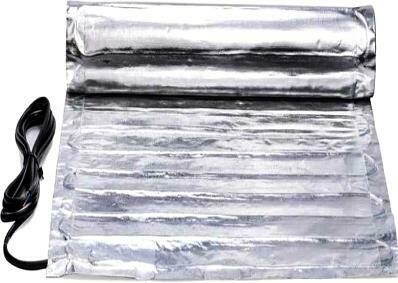

150Watt/M Foil Mat 13.0sq.M

Applications
Happy Feet Foil mat is designed for installing under wooden floors, laminate floors and under carpet flooring. The foil mat is for use in ‘dry’ installations and when installed under carpet the underlay and carpet must have a value of no more than 2.5 Tog. This allows the heat from the foil mat to transfer through the carpet to the room.
Happy Feet Foil mat can be cut and turned to achieve the required floor coverage and multiple mats can be connected together to cover large areas. When fitting under floor heating a suitable insulation should always be used especially over concrete sub floors.

. The 150W/m2 Happy Feet Foil mats can be used as a primary heat source. Each mat is supplied with full installation instructions that must be followed for a successful and warranted installation.

Technical Data
HF.F-mat uses twin conductor heating cable with fluoropolymer insulation and embeded in a reinforced aluminium foil mat. The mat total thickness is ultra thin about 1.8mm. This decreases the floor height and increases the comfort level.

Cable construction - Twin conductor
Conductor - Solid heating core
Insulation - Fluoropolymer
Cable spacing - 50mm
Cable diameter - 1.0mm
Connector - Out splice
Max Ambient Temp - 30℃
Min Installation Temp - 5℃
Rated voltage - 230Vac
Power output - 150W/m2
Resistance tolerance +10/-5 %
Cold lead - 2.0m length
Approvals CE
